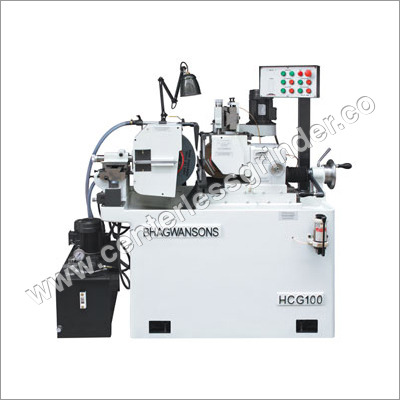

Hydraulic Centerless Grinder - HCG 100

Hydraulic Centerless Grinder - HCG 100
Hydraulic Centerless Grinder - HCG 100
Product Code : HCG 100
Brand Name : BHAGWANSONS
Product Description

Hydraulic Centerless Grinder - HCG 100

Backed by the team of adroit professional & experience in this domain, our company has emerged as one of the renowned manufacturers and exporters of Hydraulic Centerless Grinder - HCG 100. Precisely engineered using topmost quality materials, the grinder is best known in the market for its sturdy construction, high efficiency and longer service life. In addition to this, our quality controllers test the grinder on several parameters and set industrial norms. This Hydraulic Centerless Grinder - HCG 100 is available in the market at cost effective prices. These grinders are widely used for both in-feed grinding and through-feed grinding.

Salient Features

  • Microfeed-fine adjustment for depth of cut
  • Minor taper adjustment without dressing except in HCG-100
  • Template truing devices fitted with linear slides, optional in HCG-100
  • Grinding wheel & regulating wheel head fitted with precision roller/hydrodynamic bearings
  • Regulating wheel variable speed drive in HCG - 250/200, optional in HCG - 150/100
  • Separate motorized lubrication system for grinding wheel head with safety float switch
  • Precision ball screw for depth of cut in HCG - 250/200, optional in HCG - 150/100
  • Dressing slides hardened ground and protected with way wipers
  • Grinding wheel duly balanced and easy to load and unload
  • Apart from above, machines are compact, rigid and stable in design

Technical Specifications:

Grinding Capacity

Diameter

Min. 1mm
Max. 75mm

Grinding Wheel

Diameter
Width
Bore
Speed

350 mm
100 mm
152 mm
Min. 1800 R.P.M.
Max. 2000 R.P.M.

Regulating Wheel

HydraulicDiameter
Width
Bore
Recess both sides
Speed

225 mm
100 mm
76 mm
145 x 30 mm
Min. 20 R.P.M.
Med. 40 R.P.M.
Max. 100 R.P.M.

Tilting Angle

+5o/-2o

Swivelling Angle

+1o

Power Requirements

Grinding Wheel Motor
Regulating Wheel Motor
Coolant Pump Motor
Lubrication Pump
Hydraulic Unit Motor

5.5 KW/HP
0.75 KW/HP
0.12 KW/HP
0.25 KW/HP
0.75 KW/HP

Dimensions & Weight

Length
Width
Height
Centre Height of Wheels
Net Weight Approx.

1750mm
1050mm
1620mm
1000mm
1700 Kgs.

Standard Accessories:

  • Grinding wheel with flange, Regulating wheel with flange, Coolant pump with tank
  • Hydraulic tank with pump, Work rest blade for through feed grinding
  • Hand pump lubrication for slides, Machine lamp, Splash guards
  • Instruction manual, Tool kit
  • Micro feed fine adjustment for depth of cut

Optional Accessories

  • Servo control voltage stabilizer
  • Motorized centralized lubrication for slides
  • Fully enclosed splash guards
  • A.C. drive for grinding wheel head
  • A.C. drive for regulating wheel head
  • Template truing slides for profile dressing
  • Hydrodynamic bush bearings for GW head
  • Bush bearing for RW head
  • Wheel balancing stand with arbor
  • Additional grinding wheel flange
  • Additional regulating wheel flange
  • Additional work rest blade through feed
  • Additional work rest blade infeed
  • Magnetic coolant separator
  • Paper cum magnetic coolant separator
  • Anti vibration pads, Vibratory bowl feeder
  • Hydraulic oil cooler,Profile templates
  • Vibratory bowl feeder, Bar feeder for long bar grinding
  • Auto infeed grinding with hydraulic cylinder
  • Auto ejector for infeed grinding hydraulic
  • Auto ejector for infeed grinding pneumatic
  • Auto lifter for infeed grinding
  • Auto loading attachment for infeed
  • Automatic feeder for through feed grinding
  • Automatic balancing for grinding wheel
