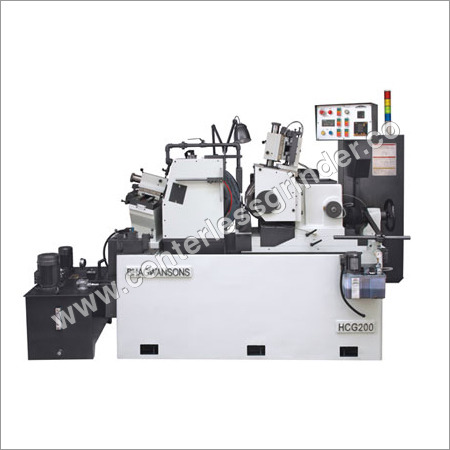

Hydraulic Centerless Grinder-HCG 200

Hydraulic Centerless Grinder-HCG 200
Hydraulic Centerless Grinder-HCG 200
Send Inquiry
Product Code : HCG 200
Brand Name : BHAGWANSONS
Product Description

Hydraulic Centerless Grinder-HCG 200

Blessed & supported by the team of talented personnel, our company is considered as one of the leading manufacturers and exporters of Hydraulic Centerless Grinder-HCG 200. Owing to its high efficiency, low maintenance cost and durability, the offered grinder is in high market demand. Further, we are delivering grinders at client’s destination within stipulated time frame. The Hydraulic Centerless Grinder-HCG 200 finds wide application in automotive, engineering and electronic industries.

Salient Features

  • Designed for both through-feed & in-feed grinding
  • Microfeed-fine adjustment for depth of cut
  • Minor taper adjustment without dressing except in HCG-100
  • Template truing devices fitted with linear slides, optional in HCG-100
  • Grinding wheel & regulating wheel head fitted with precision roller/hydrodynamic bearings
  • Regulating wheel variable speed drive in HCG - 250/200, optional in HCG - 150/100
  • Separate motorized lubrication system for grinding wheel head with safety float switch
  • Precision ball screw for depth of cut in HCG - 250/200, optional in HCG - 150/100
  • Dressing slides hardened ground and protected with way wipers
  • Grinding wheel duly balanced and easy to load and unload
  • Apart from above, machines are compact, rigid and stable in design

Technical Specifications:



Capacity

HCG-200

Max. opening between new wheels mm Max. width in infeed grinding mm

2-125 200

Grinding Wheel

500x200x304.8 1270

Dimension O.D. x width x I.D. mm Speed RPM


Regulating wheel

300x200x127 15-200 +6o/-3o +1o

Dimension O.D. x width x I.D. mm Stepless variable speed rpm Tilting Angle Swivelling Angle


Power requirement

15 KW 1.5 KW 0.37 KW 0.18 KW 0.75 KW

Grinding wheel motor Regulating wheel motor Coolant pump motor Lubrication pump Hydraulic unit motor


Dimension & Weight

1055 mm 2840 x 1670 x 1650 mm 4000 Kgs.

Height from floor to wheel center Length x Width x Height Net Weight (Approx.)


Standard Accessories -

  • Grinding wheel with flange
  • Regulating wheel with flange
  • Coolant pump with tank
  • Hydraulic tank with pump
  • Work rest blade for through feed grinding
  • Hand pump lubrication for slides
  • Machine lamp,Splash guards
  • A.C. drive for regulating wheel head
  • Instruction manual,Tool kit
  • Micro feed fine adjustment for depth of cut
  • Template truing slides for profile dressing

Optional Accessories

  • Servo control voltage stabilizer
  • Motorized centralized lubrication for slides
  • Fully enclosed splash guards
  • A.C. drive for grinding wheel head
  • Hydrodynamic bush bearings for GW head
  • Bush bearing for RW head
  • Wheel balancing stand with arbor
  • Additional grinding wheel flange
  • Additional regulating wheel flange
  • Additional work rest blade through feed
  • Additional work rest blade infeed
  • Magnetic coolant separator
  • Paper cum magnetic coolant separator
  • Anti vibration pads,Vibratory bowl feeder
  • Hydraulic oil cooler,Profile templates
  • Bar feeder for long bar grinding
  • Auto infeed grinding with hydraulic cylinder
  • Auto ejector for infeed grinding hydraulic
  • Auto ejector for infeed grinding pneumatic
  • Auto lifter for infeed grinding
  • Auto loading attachment for infeed
  • Automatic feeder for through feed grinding
  • Automatic balancing for grinding wheel
