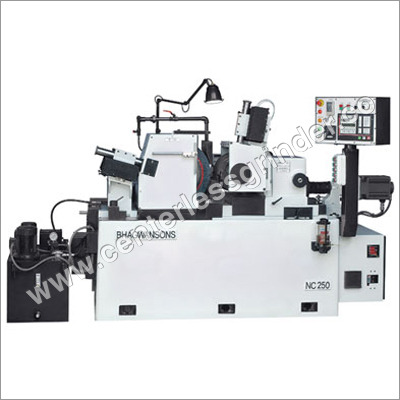

NC- 250 Centerless Grinder Machine

NC- 250 Centerless Grinder Machine
NC- 250 Centerless Grinder Machine
Product Code : NC - 250
Brand Name : BHAGWANSONS
Product Description

NC Centreless Grinder Machine

Our company is considered as one of the most notable manufacturers and exporters of Centreless Grinder Machine. The grinder machine, which we are offering is manufactured as per the international standards using high grade raw materials. Offered grinder machine is highly appreciated in the global market due to its air coolers for hydraulic oil, balanced grinding wheel and durability. The offered variety of Centreless Grinder Machine is available with us at economical prices.

Salient Features

  • Best suitable for grinding infeed / plunge components
  • Microfeed-fine adjustment for depth of cut
  • Precision Guide ways and ball screw for NC drive axis
  • Template truing devices fitted with linear slides
  • Grinding Wheel & Regulating Wheel Head fitted with precision bearings
  • Regulating Wheel with variable speed drive
  • Separate motorized lubrication system for grinding wheel head with safety float switch
  • Dressing slides hardened ground and protected with wipers

Technical Specifications


NC-100

NC-150

NC-200

NC-250

Grinding Capacity

Diameter (mm)

1-75

1-100

2-125

2-125

Width Infeed(mm)

100

150

200

250

Grinding Wheel

Dimension (mm)

350

400

500

500

Width (mm)

100

150

200

254

Bore (mm)

152

203.2

304.8

304.8

Speed RPM

1800/2000

1600/1800

1270

1270

Regulating Wheel

Diameter (mm)

225

250

300

305

Width (mm)

100

150

200

254

Bore (mm)

76

110

127

127

Speed R.P.M.
With V.F.D.

20-250

20-250

15-250

15-250

Tilting Angle

+ 5o

+ 5o

+ 6o

+ 6o


- 3o

- 3o

- 3o

- 3o

Swiveling Angle

0o

+1o

+1o

+1o

Power requirements 415 Volt 50 Hz

Grinding Wheel Motor

5.5 KW

7.5 KW

15.0 KW

18.75 KW

Regulating Wheel Motor

1.5 KW

1.5 KW

2.2 KW

2.2 KW

Coolant Pump Motor

0.12 KW

0.12 KW

0.37 KW

0.37 KW

Lubrication Pump

0.18 KW

0.18 KW

0.18 KW

0.18 KW

Hydraulic Unit Motor

0.75 KW

0.75 KW

0.75 KW

0.75 KW

Dimensions & Weight

Length (mm)

1850

2320

2930

2930

Width (mm)

1200

1350

1670

1670

Height (mm)

1630

1650

1650

1650

Net Weight Approx (Kgs)

1800

2250

4200

4400

*All specifications are subject to modification and improvement without notice.

Standard Accessories

  • Controller
  • Grinding wheel with flange
  • Regulating wheel with flange
  • Coolant pump with tank
  • Hydraulic tank with pump
  • Work rest blade for through feed grinding
  • Hand pump lubrication for slides
  • Machine lamp
  • Splash guards
  • A.C. drive for regulating wheel head
  • Instruction manual
  • Tool kit
  • Micro feed fine adjustment for depth of cut
  • Template truing slides for profile dressing
  • Hydrodynamic bush bearing for GW head ( only in 250)
  • Bush bearing for RW head ( only for 250)
  • Hydraulic oil cooler

Optional Accessories

  • Servo control voltage stabilizer
  • Motorized centralized lubrication for slides
  • Fully enclosed splash guards
  • A.C. drive for grinding wheel head
  • Hydrodynamic bush bearings for GW head except 250
  • Bush bearing for RW head except 250
  • Wheel balancing stand with arbor
  • Additional grinding wheel flange
  • Additional regulating wheel flange
  • Additional work rest blade through feed
  • Additional work rest blade infeed
  • Magnetic coolant separator
  • Paper cum magnetic coolant separator
  • Anti vibration pads
  • Profile templates
  • Servo drive motor for regulating wheel
  • Vibratory bowl feeder
  • Bar feeder for long bar grinding
  • Auto infeed grinding with hydraulic cylinder
  • Auto ejector for infeed grinding hydraulic
  • Auto ejector for infeed grinding pneumatic
  • Auto lifter for infeed grinding
  • Auto loading attachment for infeed
  • Automatic feeder for through feed grinding
  • Automatic balancing for grinding wheel
